Description

Initially designed to be housed in the frame of the outer door, it is small in size, allowing it to be installed in the door frame.
its installation in 120mm door frames.

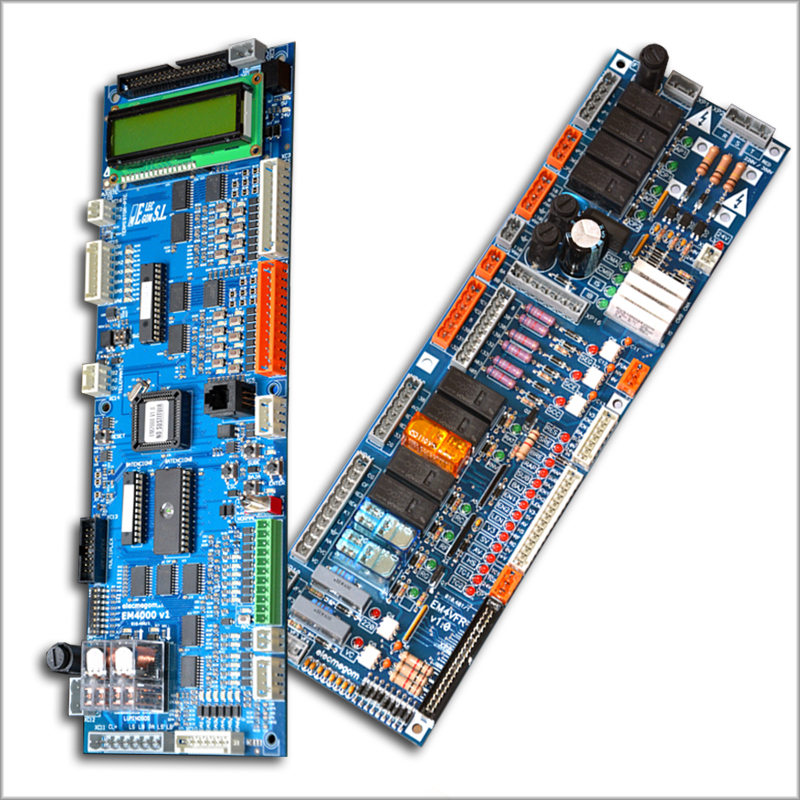

It consists of two circuits, a control circuit with LCD with which you can configure and view the status
of the elevator, in addition to being able to check the latest faults, the elevator parameterization,
battery charge and control cabinet temperature.

It is added in the version of BLUE screen on EM4000 board, direct communication with the FUJI LIFT2 drive, both LM2A and LM2C, with this we can have remote control of the drive, doing telemetry and saving the parameter settings of the drive on the platform to be able to dump that paarametrization in a new one, in case of a problem with the drive.

Allows Poletuning or Autotuning from the EM4000 board, accessing a customized menu for this function depending on the type of motor to be controlled.

Allows remote resetting of the drive, avoiding waiting for the user in the event of a momentary error that has caused the drive to block, including the BbE fault.

The other circuit is the power circuit, which includes the phase detector, the motor thermistor control, and all the inputs that monitor the elevator status.

The frequency inverter will be controlled by the controller, installed in the shaft, close to the machine.
A console in the door frame will allow access to the programming of the door, as well as monitoring the direction of the elevator and the speed at any given moment.

The design began in 2011 and production was implemented in 2014, during 3 years cabinets were manufactured in a door frame, in 2017 the production of EM4000 controllers for installations with machine room and without machine room in an integral cabinet began, in 2023 a blue multi-line LCD screen and the connection for communications between the board and the FUJI inverter were incorporated, thus achieving remote control of the frequency inverter.

Closet in landing (door frame)

  • EM4000 control board with maneuver control console.
  • EM4VF power board to control safety devices and VVVF.
  • Automatic and differential circuit breakers and switchgear protection.
  • Parameterization console of the frequency inverter.
  • Reduced width 120mm*2200mm height.
  • User tray to allow manual rescue.
  • Cockpit indication pilot at plant level (uncocking area).
  • Pilot light indicating elevator in motion.
  • Communication with the cabin by gondola telephone.
  • Emergency lighting by means of a portable ceiling light.
  • Cabinet opening by means of triangular door key.

3VF shaft cabinet

  • Cabinet located in the shaft next to the traction machine.
  • Dimensions, width 500mm*450mm*230mm depth.
  • FUJI Frenic Lift frequency inverter, exclusive for elevators.
  • Maneuver prepared for permanent magnet synchronous machines.
  • Closed-loop operation with absolute encoder.
  • Silent power and brake contactors.
  • Optimization of wiring to facilitate the assembly of the maneuver.
  • UPS (Uninterruptible Power Supply) for emergency rescue.
  • Including automatic rescue by brake opening, in the event of a general power failure, it takes the cabin to the ground and opens the cabin doors so that the cabin can be vacated.

Pre-assembled maneuver

  • Suitable for minimized pre-assembled installation.
  • The emergency system is located on the inspection pendant.
  • It includes the interconnections between the landing cabinet and the shaft.

EM4000 SCM in Integral cabinet

  • Cabinets for elevators that do not have a machine room and that cannot house the maneuver in the door frame, a cabinet is chosen outside the door frame, with a height equal to the elevator door so that it is aesthetically included inside the elevator door.
  • Control on geared or gearless machines, always controlled by a frequency inverter.
  • It includes automatic rescue in case of interruption of the power supply, in case of machines with reducer, rescue by traction (controlled by variator), while in gearless, the rescue will be performed by decompensation, controlled by the brake, in both cases by means of the UPS (Uninterruptible Power Supply) that would include the maneuver.
  • The control cabinet will house both the EM4000 control board with control console and the EM4VFR power board to control safety and VVVF devices.
  • Parameterization console of the frequency inverter.
  • Default dimensions to fit typical elevator doors 2200mm*320mm*240mm (H*W*D).
  • Cabinet with 3 divisions, the central one will be for the user, with triangle key, includes the automatic and differential protection elements, rescue elements, visualization of the cabin at plant level.
  • FUJI Frenic LIFT2 LM2A frequency inverter, exclusively for elevators in gearless operation, FUJI Frenic LIFT2 LM2C in geared motors.
  • In gearless closed-loop operation with absolute encoder, silent power and brake contactors.

EM4000 With Machine Room

  • Cabinets for elevators with machine room, in any of the electrical versions controlling the machine with frequency inverter.
  • Control on geared or gearless machines.
  • In case of emergency, rescue can be performed by traction in the case of geared machines; with gearless machines, in addition to rescue by traction, it can also be performed by decompensation.
  • The control cabinet will house both the EM4000 control board with control console and the EM4VFR power board to control safety and VVVF devices.
  • Parameterization console of the frequency inverter.
  • Minimized maneuvering cabinet with dimensions 810mm*550mm*250mm (Height*Width*Depth).
  • Rescue elements on the cabinet door, display of direction of rotation and speed of the drive in both normal and rescue mode.
  • Cockpit indication pilot at plant level (uncocking area).
  • FUJI Frenic Lift frequency inverter, exclusively for elevators in case of gearless operation, FUJI Frenic Multi, in geared motors.
  • In gearless closed-loop operation with absolute encoder.
  • In gearless maneuvers, silent power and brake contactors.
  • As an option, automatic rescue by brake opening, in the event of a general power failure, takes the cabin to the ground floor and opens the cabin doors to be able to vacate it, by means of the UPS (Uninterruptible Power Supply System) that would include the maneuver.

Description

EM4000 Maneuver
Type
 Universal Selective Collective
Coordinates
 32 32 32
Engine
 Permanent magnet synchronous
Speed
 Up to 2.5 m/sec.
Telemaintenance
 Through internet and megom OnLine platform
Plate calls
 One push button for each call, both cabin and outside.
Call log
 Outputs for outdoor registers 24Vdc positive common individually protected against short-circuit.
Tickets
 Opening doorsClosing doors

Photocell

Overload

Complete

Fire Service

Independent service

Machine Room Probe

Motor thermistance

3 programmable inputs for special functions.
Auxiliary inputs
 6 configurable auxiliary inputs for special functions
Button panel signaling
 Multivoltage Outputs

  • Direction arrows
  • Busy
  • Available
  • Open door

Outputs 24Vdc

  • You go to the plant
  • Sense of arrival
Specific outings
 Control of timed cabin lighting
Auxiliary outlets
 6 configurable protected auxiliary outputs for special functions
Inspection from the plate
 Normal/inspection switch

Up pushbutton

Down pushbutton
Reopening pushbutton
 Door reopening pushbutton on plate
Plant indicators
 Control by a single thread of:

3 EM2POS arrays

EM2LCD vertical

LCDHOR horizontal

Reduced LCD LCDECO

TFT COLOR 4″, 7″, 10″ displays

MK800 graphic display
Multiplex
 Up to four elevators in Quadruplex
Door operator
 Included on two shipments

Single-phase

Three-phase

V3F (voltage signals)

V3F (de-energized signals)

Operator 24Vdc
Specific outings
 Control of timed cabin lighting
Auxiliary outlets
 6 configurable protected auxiliary outputs for special functions
EMC
 Yes
Programming
 4 Programming keys on control board

BLUE LCD included in the control board
Configurable parameters
 Control board and power board

Description

Parameters
Programming system
 By means of 4 push buttons, up, down, Enter, Escape, BLUE LCD of enlarged dimensions, all the elements included by default in the control board of any maneuver.
Access to configuration
 With configurable 4-digit password.
Troubleshooting menu
 Last 32 failures with the following data for each of them

  • Failure number
  • Fault code
  • Floor where the elevator was located
  • Direction of travel or state of rest
  • Speed at which it was operating
  • Reset of the entire fault stack
Parameter programming menu
  1. Elevator Traction
  2. Parameters for cabinets with VVVF (VVVF types and rescues)
  3. Modification of plant codes in displays
  4. Definition of floor doors (configures double shipments)
  5. Forwarding Adjustment (plant, from where and time)
  6. Maneuvering times (Open, Standby, Lighting, Faults)
  7. Definition of EM4EXP calls and modules
  8. Universal, Selective, Universal/selective maneuvering
  9. Special call lights
  10. Voice synthesis of door status
  11. Safety module for door open leveling
  12. Door pre-opening (with safety module)
  13. Standard A3
  14. Change magnet functions
  15. Stop delay
  16. Machine room temperature ranges
  17. Abuse of booth calls
  18. Phase detector (Enable)
  19. Motor thermistance (Enable)
  20. Configure Auxiliary Outputs
  21. Configure Auxiliary Inputs
  22. Configure cabin sensors
  23. Cabin acoustic recording
Parameter programming menu
 Initializes Display codes
Initializes floor doors
Initializes floor magnets
Complete initialization (default parameters)
EM4EXP EXPANSION MODULE

EM4EXP Cabin expansion module

  • The EM4000 main control board supports up to 8 stops both in the cabin and outdoors. For elevators higher than this number of heights, this call expansion module has been designed.
  • In case of exceeding 8 heights, the EM4EXP module will be located in the cabin, leaving the 16 calls that the EM4000 board has as external calls, the EM4EXP module has 16 calls, in this case they would be the cabin calls.
  • Communication between the module and the EM4000 board via a 2-wire bus to the cabinet.
  • In addition to the 16 cabin calls, the EM4EXP module has the inputs that intervene in the cabin; Reopen boarding 1, Reopen boarding 2, Photocell, Close doors, Complete, Overload, Fire, Independent Service.
  • It has the following outputs; cabin display control, synthesizer and bidirectional intercom.
  • The EM4EXP module is also used in case the installation exceeds 16 stops, achieving with additional modules, the 32 stops, selective up and down.
  • Other uses are the signaling of plant accesses, walking presentidos, positional by lamps.
EM4RECT BRAKE MODULE

EM4RECT Brake Rectifier Module

  • New high-performance brake rectifier module
  • Maximum voltage and current capacity 1200V/15A.
  • Compatible for the activation of gearless machines with overexcitation.
  • Includes brake voltage protection fuse.
  • Indication of when the brake is activated.
EMERGENCY EM4EMERG

EM4EMERG Emergency plate

  • New emergency plate with battery charger.
  • Battery capacity voltage and current 12V/700mA/h.
  • Latest generation charger for Ni-Cd batteries.
  • 12Vdc auxiliary output for connecting communication equipment.
  • Ni-Cd battery type, which means 100% longer battery life than lead acid.
  • It includes the emergency siren and the arrival gong.
  • 10W/8ohms siren/gong loudspeaker
  • Protection fuses for the EM4EMERG board and the circuits it supplies.
EM2MUL MULTIPLEX BOARD

EM2MUL Control for multiplex maneuvers

  • Designed to control up to four elevators in multiplex operation.
  • Outputs for outdoor registers 24Vdc positive common (short-circuitable).
  • 16 Stops in Universal/Selective 14 in Collective.
  • Controls elevators with different number of stops (lame maneuvers).
  • Protected against short circuits, it isolates each of the elevators it controls.
  • Switching power supply 24Vdc/3 Ampere.
